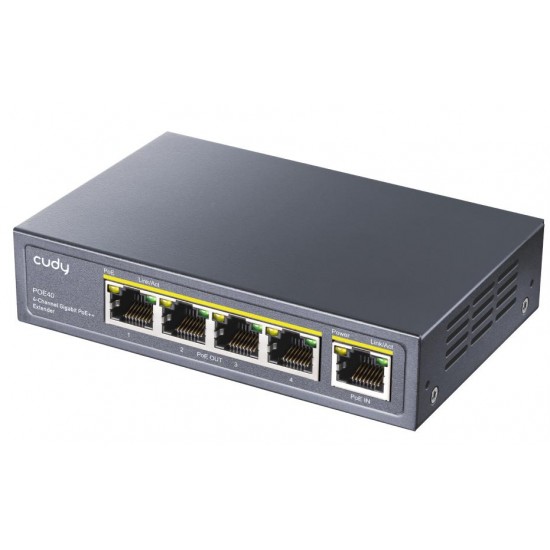

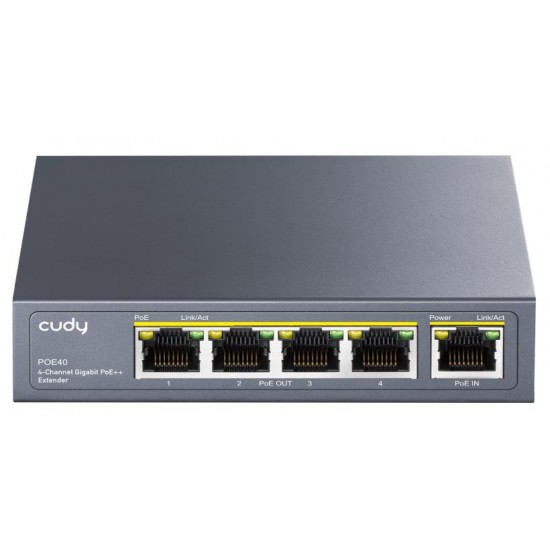

CUDY POE40 4 CHANNEL GIGABIT POE ++ EXTENDER

● IEEE802.3af/802.3at/802.3bt compliant
● One gigabit PoE input port (60 watts max)
● Four gigabit PoE output ports (30 watts max per port)

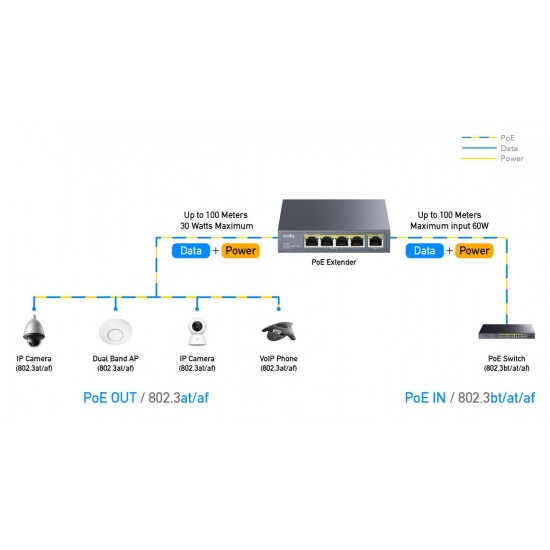

● Extends PoE signal for additional 100 meters
● No additional power supply required
● Automatically detects PoE and Non-PoE equipments
● Desktop or wall-mount installation
● Metal case, plug and play

ModelPOE40No. of channels1(PoE IN) into 4(PoE OUT)Pass Through Data Rates10/100/1000 Mbps half/full duplexPower over Ethernet inputPin Assignment and Polarity: Both 1/2 (-), 3/6 (+) and 4/5 (+), 7/8 (-)Power over Ethernet Output

Pin Assignment and Polarity: 1/2 (+), 3/6 (-)

Output Power: up to 12W for 4 PSE or 30W for 2 PSE

IndicatorsLED indicators are located on the RJ45 connector

Power indicator: PoE enabled

Powered success:Power

Network indicator: Link/Act

ConnectorsShielded RJ-45, EIA 568A and 568BNetwork cablesShielded category 5E (or higher)Dimensions119mm x 85mm x 28mmMountingWall of shelfEnvironmentIndoorEnvironmental ConditionsOperating Ambient Temperature: 0 to 45℃

Operating Humidity: Maximum 90%, Non-condensing

Storage Temperature:-40 to 70℃

Storage Humidity: Maximum 95%, Non-condensing

Regulatory ComplianceIEEE 802.3af (15.4W)

IEEE 802.3at (30W)

IEEE802.3at 4Pairs(60W)

Επιπλέον Πληροφορίες:

• MODEL: CD-POE40
• SKU: CD-POE40
• MPN: POE40
