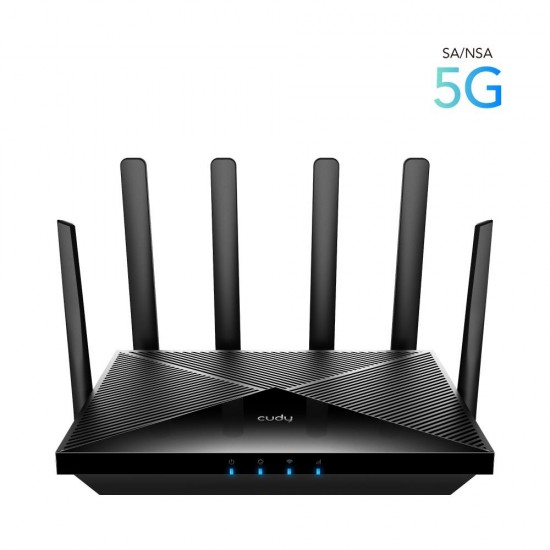

CUDY P5 AX3000 WI-FI 5G LTE ROUTER, VPN, MESH

5G Rel. 16 (Sub-6) up to 3.4 Gbps DL
AX3000 Dual-Band Wi-Fi 6
Qualcomm Dual-Core CPU
4× Gigabit Ethernet Ports
4× Detachable Cellular Antennas, 2× Fixed WiFi Antennas
ual Nano SIM slots
WAN Failover, Dual SIM Failover
DNS over Cloudflare/Google/Quad9
ZeroTier/WireGuard/OpenVPN/IPSec/L2TP/PPTP VPN

Super-Fast Wi-Fi 6 Connects 4× More Devices

Full 160 Mhz channel width enables peak speed at 2402 Mbps on the 5 GHz band, best for lag-free gaming and live streaming in flawless quality. Far-reaching 2.4 GHz signal covers an expansive area, so you can enjoy the network in the backyard. OFDMA and powerful CPU enables 4× capacity for more devices.

Redundant SIM Slots
Dual SIM slots provide redundancy and Dual Nano SIM slots for redundant backup. Both SIM slots can be filled. Auto and manual mode is available for redundancy settings

WAN Internet, 4G Backup
Set WAN/LAN port as WAN to enable Cudy to use the landline internet from WAN, and 4G/5G connection works as a backup to provide a sustained and reliable internet connection for you.

Easily Optimize Signal Reception
Set WAN/LAN port as WAN to further assure staying online. Detachable cellular antennas enable reception optimization by plugging extension cables up to 12 meters* into SMA interface connectors.

Model AX3000 Wi-Fi 6 5G SA/NSA Router Data Speed Wi-Fi 2.4GHz (802.11ax/n/g/b, MIMO 574Mbps) 5GHz (802.11ax/ac/n/a, MIMO 2402Mbps)

5G Module (RM520N)

Sub-6 GHz

5G SA Sub-6: Max. 2.4 Gbps (DL)/900 Mbps (UL) 5G NSA Sub-6: Max. 3.4 Gbps (DL)/550 Mbps (UL) LTE-FDD: Max. 1.6 Gbps(DL)/200 Mbps (UL) WCDMA: Max. 42 Mbps (DL)/5.76 Mbps (UL)

5G Module (RM510Q)

Sub-6 GHz/mmWave

EOL

5G SA Sub-6: Max. 2.1 Gbps (DL)/450 Mbps (UL) 5G NSA Sub-6: Max. 3.3 Gbps (DL)/650 Mbps (UL) 5G NSA mmWave: Max.4.5 Gbps (DL)/2.9 Gbps (UL) LTE-FDD: Max. 2 Gbps(DL)/200 Mbps (UL) WCDMA: Max. 42 Mbps (DL)/5.76 Mbps (UL)

5G Module (RM505Q)

Sub-6 GHz

EOL

5G SA Sub-6: Max. 2.1 Gbps (DL)/450 Mbps (UL) 5G NSA Sub-6: Max. 2.5 Gbps (DL)/650Mbps (UL) LTE-FDD: Max. 1G bps(DL)/200Mbps (UL) WCDMA: Max. 42 Mbps (DL)/5.76 Mbps (UL) Hardware CPU: Qualcomm 1 GHz Dual Core CPU 4G Module:: RM520N (Qualcomm X62) EOL:: Quectel RM510Q or RM505Q (Qualcomm X55) DRAM: DDR3 256 MB (2Gbit) Flash: Nand 128 MB (1Gbit) 4 x GbE RJ45: 1 GbE WAN/LAN + 3 GbE LAN 2 x SIM Slots (Nano) 1 x WPS Button 1 x Reset Button

2 x Fixed WiFi Antennas

4 x Detachable Cellular Antennas LED indicators (Power, WiFi, Internet, Signal) Software DHCP: Server, Client List, Address Reservation NAT: Port Forwarding, Port Triggering, UPnP, DMZ Firewall: Mac Filter, IP Filter, Domain Filter DDNS: Compatible with 20 more DDNS providers VPN:PPTP/L2TP/OpenVPN/WireGuard/IPsec DNS over TLS: Cloudflare/Google Schedule: Schedule Reboot /Wi-Fi Schedule Internet Protocol version 4 or 6 (IPv4/IPv6) Quality of Service (QoS) TTL configuration(Extend/Spoof) Band Selection Physical Product Dimension: 253x152.5x48.2mm (LxWxH) Package Dimension: 415x265x90mm (LxWxH) Power AC Power Adapter: Input: 90~260V Output: 12V, 2.5A DC input (12V-2.5A) Barrel Plug SMS Send Message Receive Message Environmental Operation Temperature: 0° C to +45° C Storage Temperature: -40° C to +70° C Relative Humidity: 5% to 95% Non-Cond Package Contents 5G WiFi6 Router Power Adapter RJ45 Ethernet Cable Quick Installation Guide System Requirements Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,NetWare, UNIX or Linux, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Subscription with an internet service provider (for internet access)

Επιπλέον Πληροφορίες:

• MODEL: CD-P5
• SKU: CD-P5
• MPN: P5
• ΡΥΘΜΟΣ ΜΕΤΑΔΟΣΗΣ ΔΕΔΟΜΕΝΩΝ: AX3000Mbps
• ΚΕΡΑΙΑ: ΑΠΟΣΠΩΜΕΝΗ
• ΣΥΧΝΟΤΗΤΑ: DUAL BAND (2.4 + 5 GHz)
• ΥΠΟΣΤΗΡΙΞΗ POE: ΟΧΙ
• ΛΕΙΤΟΥΡΓΙΑ MESH: ΝΑΙ
• ΕΙΔΟΣ: 5G LTE ROUTER
