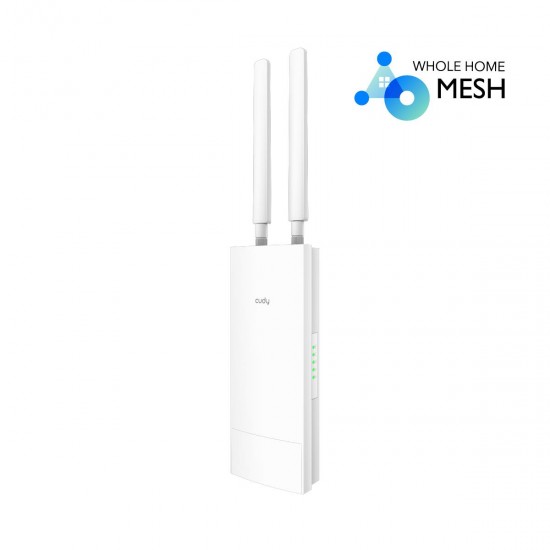

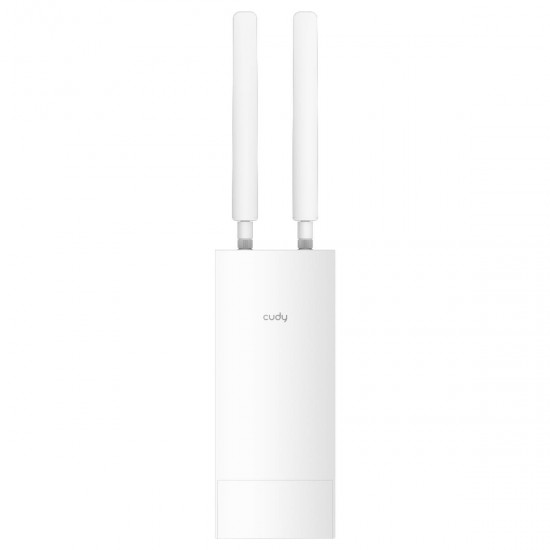

CUDY AP1300 OUTDOOR AC1200 WI-FI A/P, ROUTER, MIMO, MESH, POE

AC1200 Dual Band Wi-Fi
MT7621DAT+MT7613B+MT7603E
1× Gigabit WAN/LAN
1× WPS Button
1× Reset Button
802.3at/af PoE or Passive PoE
MU-MIMO/OFDMA
Fat/Fit AP mode
IP65 WaterProof

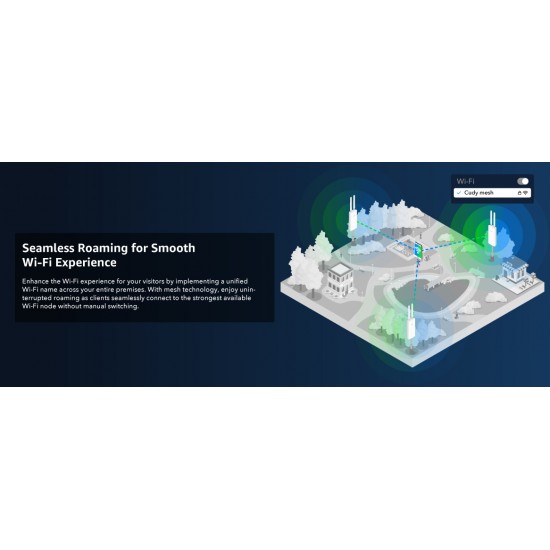

Mesh

Hardware FeaturesHighlightsCPU: 880 MHz Dual-Core ProcessorFlash: 16 MB (128 Mbit)DDR: 128 MB (1 Gbit)Interface1× Gigabit Ethernet (RJ-45) Port (Support IEEE802.3af PoE and Passive PoE)1× Reset ButtonPower Supply802.3af/at PoE24-57 V Passive PoE (+4,5pins; -7,8pins)Dimensions ( W×D×H )240×100×53.7mmAntenna Type

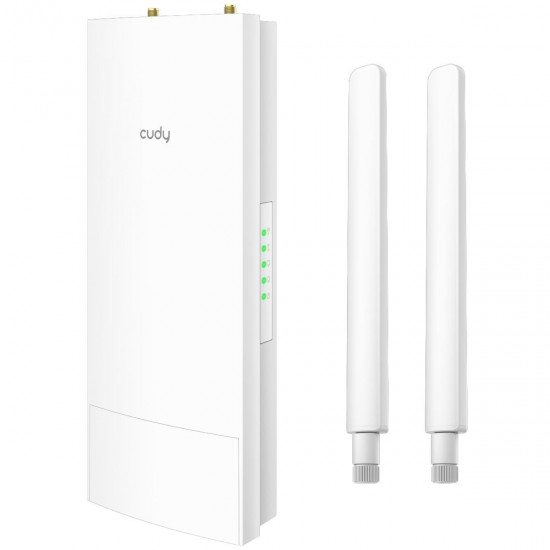

2× Detachable Omni-directional Antennas

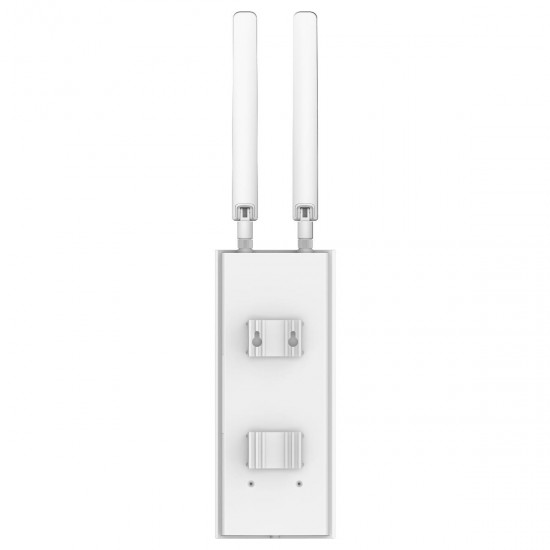

MountingPole/Wall Mounting (Kits included)Wireless FunctionWireless Standard:

Wi-Fi 5 (802.11ac/n/g/b/a)

Frequency:5 GHz, 2.4 GHzSignal Rate: 5 GHz: Up to 867 Mbps2.4 GHz: Up to 300 MbpsBandwidth20/40/80 MHzWireless FunctionsMultiple SSIDEnable/Disable Wireless RadioTransmit Power Control QoS (WMM)Mesh (Requires a Cudy Mesh unit/Mesh router/AC as the gateway with firmware newer than 15.28)Band SteeringMU-MIMOBeamformingRate LimitReboot ScheduleWireless ScheduleWireless EncryptionWPA-PSKWPA2-PSKWPA-PSK/WPA2-PSKSecurityAccess ControlMac FilteringWireless Isolation ClientsWeather-ProofWater-ProofIP65 (Protection against any dust and low-pressure water from any directions)Lightning Protection

4 KV Lightning/Surge protection at the Ethernet port

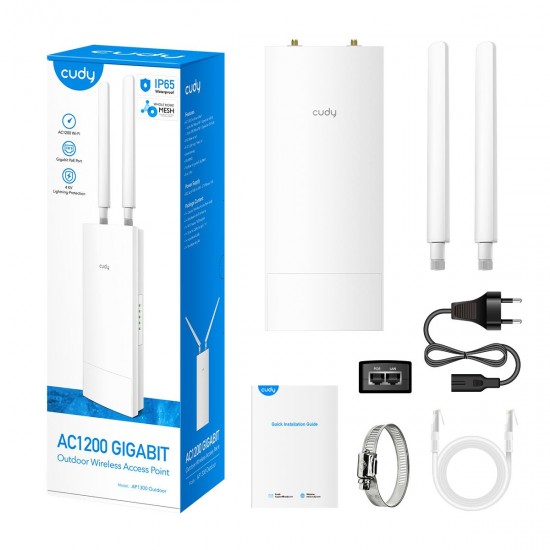

Operating ModeAccess Point ModeRouter ModeRE ModeWISP ModePackage ContentsOutdoor Wireless Access Point2× Detahcable Wi-Fi Antennas24 V Passive PoE AdapterMounting KitsInstallation GuideEnvironmentOperating Temperature: -20~60 °C (-10~140°F)Storage Temperature: -40–70 °C (-40–158 °F)Operating Humidity: 10–90% RH non-condensingStorage Humidity: 5–90% RH non-condensingSystem Requirements

Operating system that supports network/Wi-Fi connectivity, such as Windows, Android, macOS, iOS, or Linux

Επιπλέον Πληροφορίες:

• MODEL: CD-AP1300-OUT
• SKU: CD-AP1300-OUT
• MPN: AP1300 OUT
• ΡΥΘΜΟΣ ΜΕΤΑΔΟΣΗΣ ΔΕΔΟΜΕΝΩΝ: AC1200Mbps
• ΚΕΡΑΙΑ: ΑΠΟΣΠΩΜΕΝΗ
• ΣΥΧΝΟΤΗΤΑ: DUAL BAND (2.4 + 5 GHz)
• ΥΠΟΣΤΗΡΙΞΗ POE: ΝΑΙ
• ΛΕΙΤΟΥΡΓΙΑ MESH: ΝΑΙ
• ΕΙΔΟΣ: Outdoor Κεραία/AP
