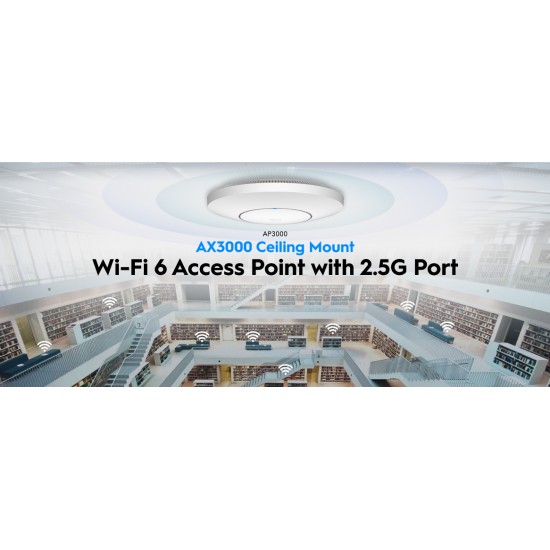

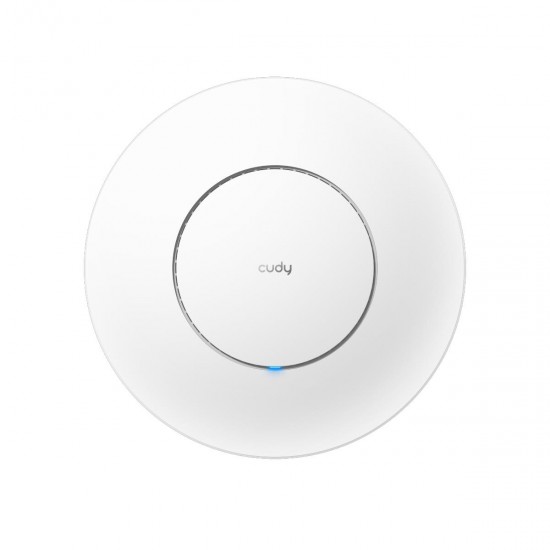

CUDY AP3000 AX3000 DUAL BAND ACCESS POINT ΟΡΟΦΗΣ, MU-MIMO, POE

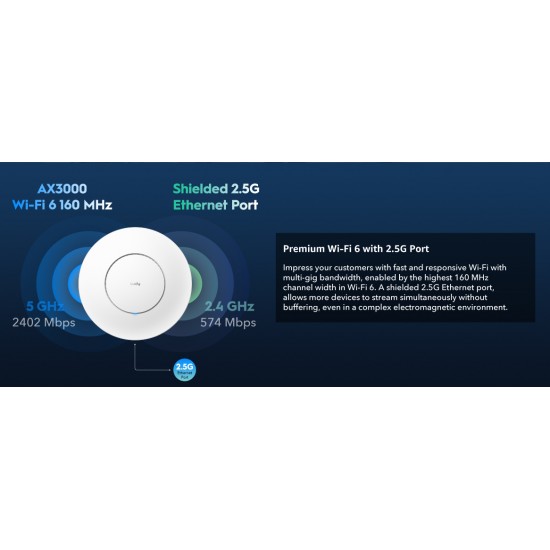

● Premium AX3000 Wi-Fi 6
● Shielded 2.5G Port for Multi-Gig Throughput

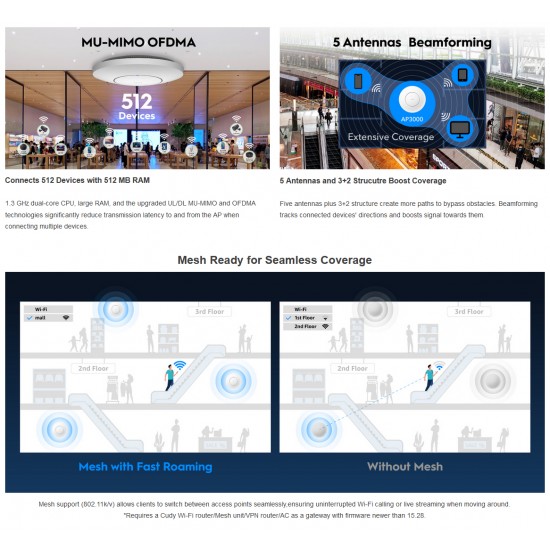

● Maximum 512 Clients with 512 MB Large RAM
● Five Antennas for Broader Wi-Fi Coverage

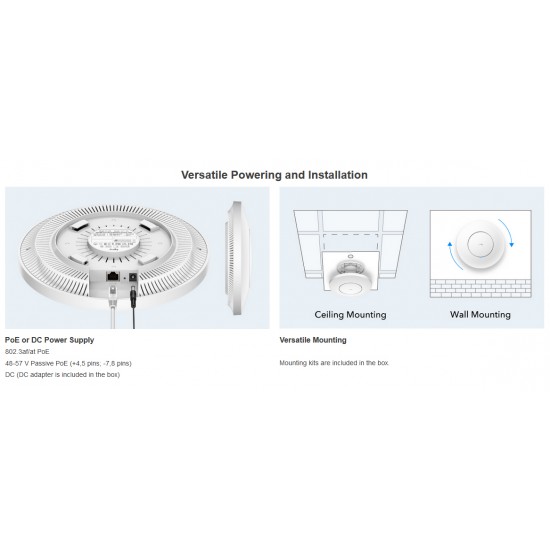

● 802.3at/af PoE, Passive PoE, or DC Powering
● Mesh with Cudy Mesh Router / AC
● Config Radius Server for AAA Feature

Hardware FeaturesHighlightsCPU: 1.3 GHz Dual-Core ARM CPUFlash: 256 MB NAND (2 Gbit)DDR: 512 MB DDR4 (4 Gbit)Interface1× 2.5 Gbps Ethernet Port (PoE In)1× Reset Button1× DC JackPower Supply802.3af/at PoE48-57 V Passive PoE (+4,5pins; -7,8pins)

12 V ⎓ 1.5 A DC

Power Consumption

PoE Idle: 5.7 W

12 V DC Idle: 6.1 W

PoE Max: 12 W

12 V DC Max: 11 W

48 V DC Max: 12 W

Dimensions (Dia.×H )Φ231.9×57.1 mm (Φ9.13×2.25 inches)Antenna Type

4× Internal Omni-directional Antennas

MountingCeiling/Wall Mounting (Kit included)Wireless FunctionWireless Standards

Wi-Fi 6 (802.11ax/ac/n/g/b/a)

Frequency2.4 GHz and 5 GHzSignal Rate5 GHz: Up to 2402 Mbps2.4 GHz: Up to 571 MbpsChannel Width20/40/80/160 MHz

Wireless Functions

(Features with * require a Cudy AC as the gateway. Cudy AC is coming soon)

(Features with ** require a Cudy WR1300/WR3000 or Cudy AC as the gateway)

Multiple SSID *Captive Portal **Seamless Roaming MeshSelf-Organizing MeshBand Steering *Auto Channel Optimization *Enable/Disable Wireless RadioTransmit Power Control QoS (WMM)MU-MIMOBeamformingRate LimitReboot ScheduleWireless ScheduleWireless EncryptionWPA-PSK, WPA2-PSK, WPA3-SAE, WPA-PSK/WPA2-PSK, WPA2-PSK/WPA3-SAE

Security

(Features with * require a Cudy AC as the gateway, Cudy AC is coming soon in late 2023)

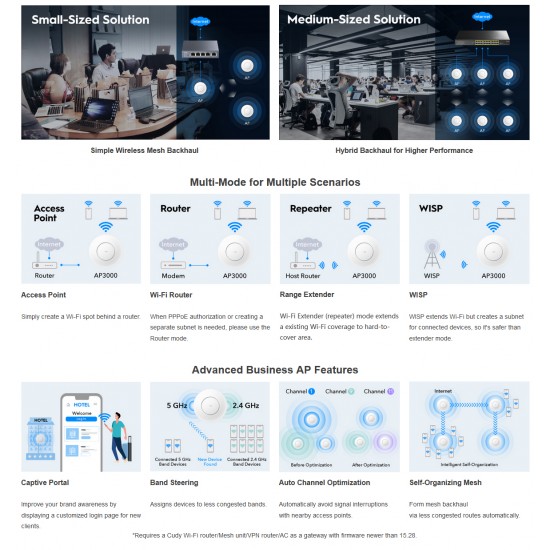

IP/MAC FilteringAP Isolation*Operating ModesWireless Access Point ModeWireless Router ModeWireless Extender ModeWISP ModePackage ContentAccess Point DC AdapterMounting KitInstallation GuideEnvironmentsOperating Temperature: 0~40 °C (32~104 °F)Storage Temperature: -40~70 °C (-40~158 °F)Operating Humidity: 10~90% RH non-condensingStorage Humidity: 5~90% RH non-condensingSystem RequirementsWindows, MAC OS, NetWare, UNIX, or LinuxFirefox 12.0+, Chrome 20.0+, Safari 4.0+, or other web browserA fiber/cable/DSL Modem, or other devices providing wired internet Subscription with an internet service provider for internet accessA power socket for AC power supply, or PoE power supply

Advanced business AP features require a Cudy AC as the gateway, Cudy AC is coming soon in late 2023.

Mesh features require a Cudy Mesh unit/Mesh router or AC as the gateway with firmware newer than 15.28.

Επιπλέον Πληροφορίες:

• MODEL: CD-AP3000
• SKU: CD-AP3000
• MPN: AP3000
• ΡΥΘΜΟΣ ΜΕΤΑΔΟΣΗΣ ΔΕΔΟΜΕΝΩΝ: AX3000Mbps
• ΣΥΧΝΟΤΗΤΑ: DUAL BAND (2.4 + 5 GHz)
• ΥΠΟΣΤΗΡΙΞΗ POE: ΝΑΙ
• ΛΕΙΤΟΥΡΓΙΑ MESH: ΝΑΙ
• ΕΙΔΟΣ: AP/ROUTER
