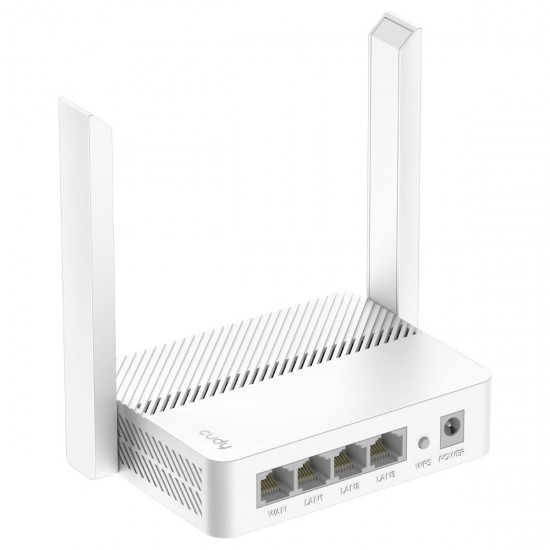

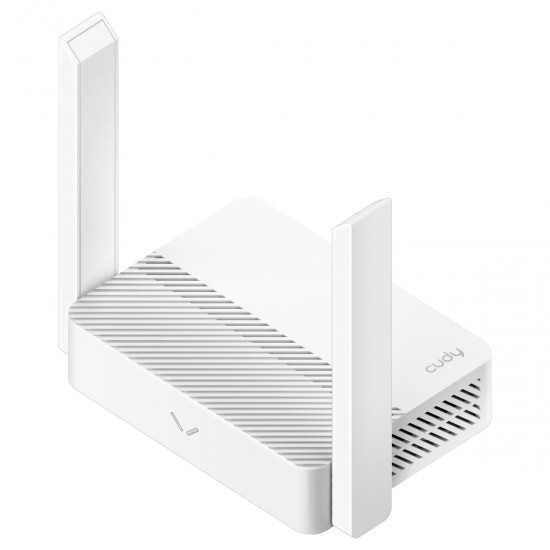

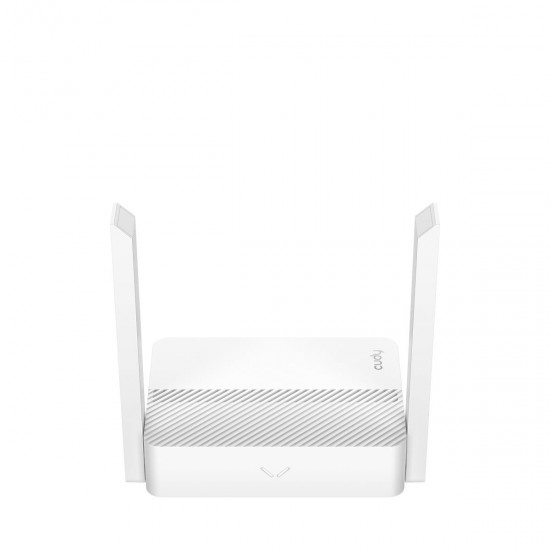

CUDY WR1200E AC1200 WI-FI ROUTER, MU-MIMO, BEAMFORMING

A dual-band WiFi router with three Fast Ethernet ports allows smooth video playback, gaming, and a maximum of 100 Mbps internet access, featuring MU-MIMO.

• 4-Stream Dual-Band Wi-Fi 5
• 867 Mbps + 300 Mbps Wi-Fi 1
• 4× Fast Ethernet Ports
• 40 Connected Devices 2
• Covers 100m² (1,100 ft²) 3
• VPN Client of WireGuard, OpenVPN, etc
• Router/AP/RE/WISP/Client Modes
• Cudy App.

CPUChipsetMT7628CPU Details580 MHz Single-Core, MIPS24KECMemory/StorageFlash/ROM8 MB (64 Mbit ) NORDDR/RAM64 MB (512 Mbit) DDR2Wireless5 GHz Wi-Fi Speed867 Mbps2.4 GHz Wi-Fi Speed300 Mbps5 GHz Wi-Fi Streams2T2R (2×2 MIMO)2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)Wi-Fi Antennas2× Fixed5 GHz Antenna Gain Max4.93dBi2.4 GHz Antenna Gain Max3.49dBiFEM or PA/LNA5 GHz: 2× Internal2.4 GHz: 2× InternalBeamformingTRUERange PerformanceMax: 170 m (558 ft)Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.Wall PerformanceTwo wooden walls with thickness < 10 cm (4)One concrete wall with thickness < 20 cm (7)Interfaces10/100 Mbps RJ45 Ports4Ethernet Notes1× WAN port, the rest are LAN portsLEDSystemPhysical ButtonsWPS ButtonReset ButtonPower InputDC JackPowerPower MethodsDCDC12V 1APower AdapterInput: 100 ~ 240 V, 50/60 Hz ACOutput: 12V 1A DCMax Power Consumption (W)8WIdle Power Consumption (W)3WReliabilityEnvironmentOperating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)Humidity: 10% ~ 90% non-condensingStorage Humidity: 5% ~ 95% non-condensingCertificationsFCC, CEMechanicalInstallationDesktopDimension118×80×27.5 mm4.65×3.15×1.08 inchesWirelessWi-Fi StandardsWi-Fi 5Max Wi-Fi Modulation256-QAMWi-Fi EfficiencyMU-MIMOWi-Fi Efficiency NoteMU-MIMO available on 5 GHzMax Capacity128Recommended Client Upper Limit40Max Wi-Fi Channel Width80 MHzWi-Fi SecurityWPA/WPA2/WPA3Guest Network2.4 GHz, 5 GHzWPSTRUEGeneralOperation ModesWi-Fi RouterAccess PointRange ExtenderWISPClientWAN ModeDHCPStatic IPPPPOEPPTPL2TPInternet Failover SequenceWANWISPNetworkQoSPer-User Rate LimitingDHCPAddress ReservationDHCP Client ListServerIP VersionsIPv4/IPv6IPv6 ProtocolsRelayDynamic (SLAAC/DHCPv6)Static (Fixed IP)Passthrough464XLATMAP-EDS-LiteIPTV/VLANBridgeTag VLANVoIP VLANIPTV VLANTTL CustomizationExtendSpoofCustomIGMPIGMP ProxyIGMP SnoopingForwardingPort ForwardingPort TriggeringUPnPDMZFirewallSPI FirewallDoS ProtectionBlock PINGApplication Layer GatewayIPSec PassthroughL2TP PassthroughPPTP PassthroughFTP PassthroughTFTP PassthroughH323 PassthroughSIP PassthroughRTSP PassthroughUtilitiesVPN ClientOpenVPNWireguardPPTPL2TPDNS OptionsManual DNSRebind ProtectionOverride Clients DNSWake on LANTRUEOnline DetectionTRUEManagementAll Devices ManagementWi-Fi Time ScheduleMAC FilterIP/MAC BindingPer-Devices ManagementInternet On/OffVPN On/OffOnline Time ScheduleDevice RenameContent ManagementDomain FilterIP FilterSystemLED ControlTRUELocal Control MethodConfig Web PageApp ControlRemote Control MethodTR069/TR098/TR111/TR181Config Page via HTTPFirmware UpgradeLocal UpdateReliabilityTimed RebootBackup and RestoreDiagnostic ToolsDiagnosisPingTracerouteNSLookupSystem LogLanguagesEnglishGermanSpanishFrenchHebrewItalianPortugueseUkrainianRussianKoreanDashboardPanelInternet StatusDevices ManagementWAN StatusLAN StatusWISP StatusWi-Fi StatusVPN StatusDHCP Server StatusSystem VersionChartsInternet SpeedWISP SpeedWi-Fi Speed

Επιπλέον Πληροφορίες:

• MODEL: CD-WR1200E
• SKU: CD-WR1200E
• MPN: CD-WR1200E
• ΡΥΘΜΟΣ ΜΕΤΑΔΟΣΗΣ ΔΕΔΟΜΕΝΩΝ: AC1200Mbps
• ΣΥΧΝΟΤΗΤΑ: DUAL BAND (2.4 + 5 GHz)
• ΛΕΙΤΟΥΡΓΙΑ MESH: ΟΧΙ
• ΕΙΔΟΣ: AP/ROUTER
