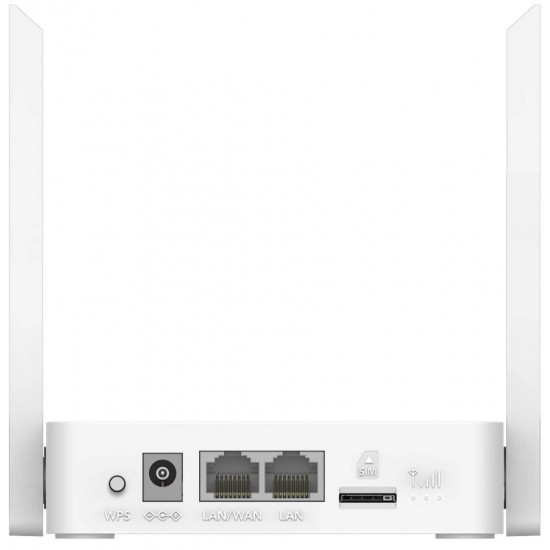

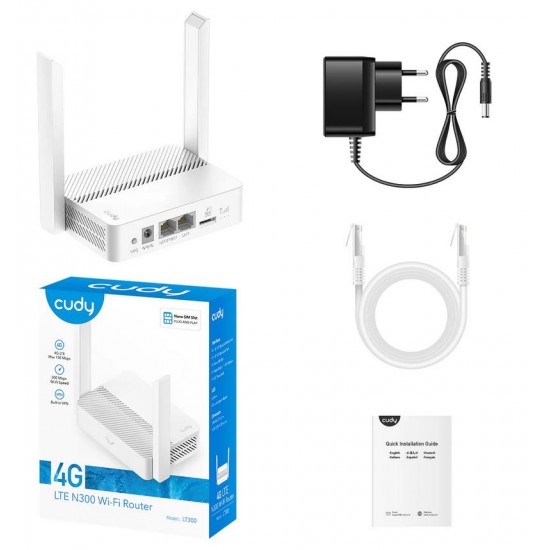

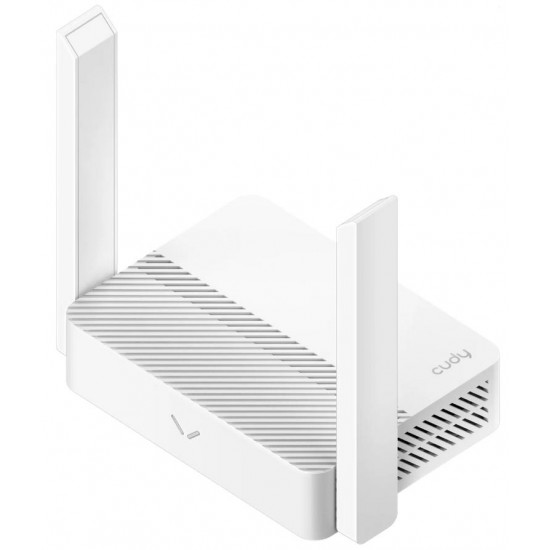

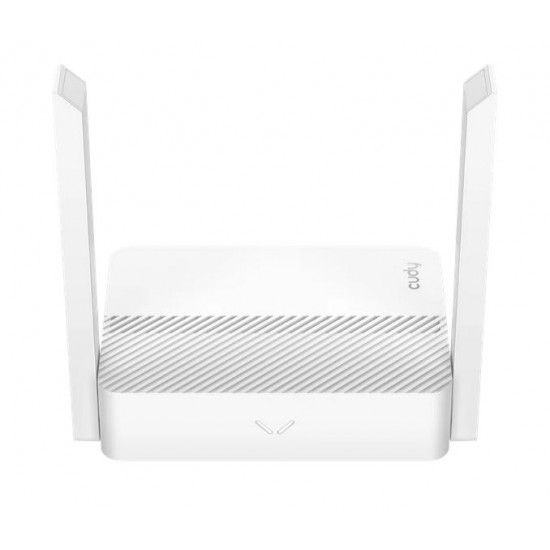

CUDY LT300_EU N300 WI-FI 4G LTE ROUTER, MIMO

A 4G WiFi router with one nano SIM slot and two Ethernet ports, providing easy-to-install flexible networks for home, office, surveillance, exhibitions, and RV scenarios.

4G Cat. 4 with Max 150 Mbps DL
300 Mbps Wi-Fi 1
1× Nano SIM Slot
VPN Server and Client
Cudy App, Cloud Control

Model Version LT300 2.0 CPU CPU Chipset MT7628 CPU Details 580 MHZ Single-Core, MIPS24KEC Memory/Storage Memory/Storage Flash/ROM 8 MB (64 Mbit ) NOR DDR/RAM 64 MB (512 Mbit) DDR2 Cellular Cellular Cellular Standards 4G Cat. 4 Cellular Antennas 2× Fixed SIM Options 1× Nano SIM Slot Available Versions EU EU Version Cellular EU Version Cellular Suitable Region Europe, Middle East, Africa Max DL Speed 150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD) Max UL Speed 50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD) Advanced DL 2×2 MIMO Cellular Bands LTE-FDD: B1/3/5/7/8/20/28
LTE-TDD: B38/40/41
WCDMA: B1/5/8 Wireless Wireless 2.4 GHz Wi-Fi Speed 300 Mbps 2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO) Wi-Fi Antennas 2× Internal 2.4 GHz Antenna Gain Max 2.83 dBi Range Performance Max: 100 m (328 ft)
Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions. Wall Performance One wooden walls with thickness < 10 cm (4)
One concrete wall with thickness < 10 cm (4) Interfaces Interfaces Physical ButtonsWPS Button Reset Button10/100 Mbps RJ45 Ports 2 Ethernet Notes One port supports WAN/LAN configuration, and the rest are LAN ports LEDSystem Cellular Signal StrengthPower Input DC Jack Power Power Power Methods DC DC 12V 1A Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC Max Power Consumption (W) 8W Idle Power Consumption (W) Wireless Wireless Wi-Fi Standards Wi-Fi 4 Max Wi-Fi Modulation 64-QAM Max Capacity 64 Recommended Client Upper Limit 30 Max Wi-Fi Channel Width 40 MHz Wi-Fi Security WPA/WPA2/WPA3 Guest Network 2.4 GHz WPS True General General Operation Modes Cellular Router Wi-Fi Router WISP Cellular APN Band Select (Band Lock) Cellular Mode Select Data Roaming APN Profile Manual APN Profile MBN MTU Value Cellular Mode 4G Only 3G Only Auto WAN Mode DHCP Static IP PPPOE L2TP PPTP Internet Failover Sequence WAN WISP Cellular Network Network QoS Per-User Rate Limiting DHCP Address Reservation DHCP Client List Server IP Versions IPv4/IPv6 IPv6 Protocols Relay Dynamic (SLAAC/DHCPv6) Staic (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite IPTV/VLAN Bridge Tag VLAN TTL Customization Extend Spoof Custom IGMP IGMP Proxy IGMP Snooping Forwarding Port Forwarding Port Triggering UPnP DMZ Firewall SPI Firewall DoS Protection Block PING Application Layer Gateway IPSec Passthrough L2TP Passthrough PPTP Passthrough FTP Passthrough TFTP Passthrough H323 Passthrough SIP Passthrough RTSP Passthrough Utilities Utilities VPN Server WireGuard OpenVPN PPTP L2TP VPN Client WireGuard OpenVPN PPTP L2TP DNS Options Manual DNS Rebind Protection Override Clients DNS Online Detection True Management Management All Devices Management Wi-Fi Time Schedule MAC Filter IP/MAC Binding Per-Devices Management Intenent On/Off VPN On/Off Online Time Schedule Device Rename Content Management Domain Filter IP Filter System System Local Control Method Config Web Page App Control Remote Control Method App Control Config Page via HTTP Firmware Upgrade Local Update App (Over the Air) Online Update

Επιπλέον Πληροφορίες:

• MODEL: CD-LT300
• SKU: CD-LT300
• MPN: LT300_EU
• ΡΥΘΜΟΣ ΜΕΤΑΔΟΣΗΣ ΔΕΔΟΜΕΝΩΝ: 300Mbps
• ΚΕΡΑΙΑ: ΜΗ ΑΠΟΣΠΩΜΕΝΗ
• ΣΥΧΝΟΤΗΤΑ: 2.4GHz
• ΥΠΟΣΤΗΡΙΞΗ POE: ΟΧΙ
• ΛΕΙΤΟΥΡΓΙΑ MESH: ΟΧΙ
• ΕΙΔΟΣ: AP/ROUTER
