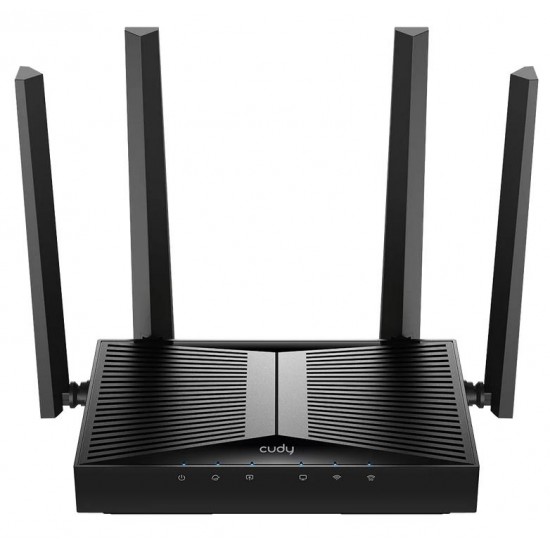

CUDY WR3600 BE3600 GIGABIT Wi-Fi 7 MESH ROUTER

A dual-band WiFi 7 router with an aggregate of 3.6 Gbps speed and five Gigabit ports, catering to gaming and entertainment scenarios

Broadcom 2 GHz Quad-Core CPU
4-Stream Dual-Band Wi-Fi 7
2880 Mbps + 688 Mbps Wi-Fi 1
5× Gigabit Ethernet Ports
Covers 130 m² (1,400 ft²) 2
VPN Server and Client
Cudy App, Cloud Control
Actual wireless data throughput will vary as a result of network conditions, client limitations, and environmental factors including building layout, obstacles, and client location.
The wireless coverage claim serves as a reference only. Coverage performance will vary due to environmental factors including building layout, obstacles, traffic volume and density, and device location. For optimal coverage, please place the device in a central location within the area requiring Wi-Fi.

Model Version Model Version WR3600 1.0 CPU CPU Chipset BCM6764 CPU Details 2.0 GHz Quad-Core, ARM Cortex-A7 Memory/Storage Memory/Storage Flash/ROM 128 MB (1 Gbit) NAND DDR/RAM 512 MB (4 Gbit) DDR3L Wireless Wireless 5 GHz Wi-Fi Speed 2880 Mbps 2.4 GHz Wi-Fi Speed 688 Mbps 5 GHz Wi-Fi Streams 2T2R (2×2 MIMO) 2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO) Wi-Fi Antennas 4× Fixed 5 GHz Antenna Gain Max 5.5dBi 2.4 GHz Antenna Gain Max 5.4dBi FEM or PA/LNA 5 GHz: 2× External 2.4 GHz: 2× Internal Beamforming True Range Performance Max: 240 m (787 ft)
Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions. Wall Performance Two wooden walls with thickness < 10 cm (4)
One concrete wall with thickness < 20 cm (7) or two concrete walls with thickness < 10 cm (4) Interfaces Interfaces Gigabit RJ45 Ports 5 Ethernet Notes 1× WAN port, the rest are LAN ports LED Power Internet WAN LAN 2.4 GHz Wi-Fi 5 GHz Wi-Fi Physical Buttons WPS Button Reset Button Power Input DC Jack Power Power Power Methods DC DC 12V 1A Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC Max Power Consumption (W) 9W Reliability Reliability Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing Certifications Certifications FCC, CE Mechanical Mechanical Installation Desktop Wall-mount Dimension 183.3×109×38 mm
7.22×4.29×1.5 inches Package Content Package Content WR3600 Power Adapter Ethernet Cable Installation Guide Ordering Information Ordering Information Retail Package Dimension 330×256×60 mm
12.99×10.08×2.36 inches Units per Carton 10 Carton Dimension 52.8×31.7×34.7 cm
20.79×12.48×13.66 inches Wi-Fi Standards Wi-Fi 7 Max Wi-Fi Modulation 4K-QAM Wi-Fi Efficiency MLO MRU Puncturing OFDMA MU-MIMO BSS Color Max Capacity 512 Recommended Client Upper Limit 200 Max Wi-Fi Channel Width 160 MHz Wi-Fi Security WPA/WPA2/WPA3 Guest Network 2.4 GHz, 5 GHz WPS True General General Operation Modes Wi-Fi Router Access Point Multi-Band Backhaul true WAN Mode DHCP Static IP PPPOE Notes The Range Extender/WISP/Client modes will be available with later firmware upgrade.
Cudy Mesh and related backhaul features will be available with later firmware upgrade. Network Network QoS Per-User Rate Limiting DHCP Address Reservation DHCP Client List Server IP Versions IPv4/IPv6 IPv6 Protocols Relay Dynamic (SLAAC/DHCPv6) Staic (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite IPTV/VLAN Bridge Tag VLAN TTL Customization Extend Spoof Custom IGMP IGMP Proxy IGMP Snooping Forwarding Port Forwarding Port Triggering UPnP DMZ Firewall SPI Firewall DoS Protection Block PING Application Layer Gateway IPSec Passthrough L2TP Passthrough PPTP Passthrough FTP Passthrough TFTP Passthrough H323 Passthrough SIP Passthrough RTSP Passthrough Utilities Utilities VPN Server WireGuard OpenVPN IPsec Zerotier PPTP L2TP VPN Client WireGuard OpenVPN IPsec Zerotier PPTP L2TP DNS Options DNS over TLS Manual DNS Rebind Protection Override Clients DNS DNS over TLS Providers Cloudflare Google Quad9 Custom Wake on LAN True Online Detection True Management Management All Devices Management Wi-Fi Time Schedule MAC Filter IP/MAC Binding Per-Devices Management Intenent On/Off VPN On/Off Online Time Schedule Device Rename Content Management Domain Filter IP Filter System System LED Control ture Local Control Method Config Web Page App Control Remote Control Method Config Page via HTTPS App Control TR069/TR098/TR111/TR181 Firmware Upgrade Local Update App (Over the Air) Online Update Reliability Timed Reboot Backup and Restore Diagnostic Tools Diagnosis Ping Traceroute NSLookup System Log Dashboard Dashboard Panel Internet Status Devices Management WAN Status LAN Status Wi-Fi Status VPN Status DHCP Server Status System Version Charts Internet Speed Wi-Fi Speed

Επιπλέον Πληροφορίες:

• MODEL: CD-WR3600
• SKU: CD-WR3600
• MPN: WR3600
• ΡΥΘΜΟΣ ΜΕΤΑΔΟΣΗΣ ΔΕΔΟΜΕΝΩΝ: 3570 Mbps
• ΚΕΡΑΙΑ: ΜΗ ΑΠΟΣΠΩΜΕΝΗ
• ΣΥΧΝΟΤΗΤΑ: DUAL BAND (2.4 + 5 GHz)
• ΥΠΟΣΤΗΡΙΞΗ POE: ΟΧΙ
• ΛΕΙΤΟΥΡΓΙΑ MESH: ΟΧΙ
• ΕΙΔΟΣ: AP/ROUTER
