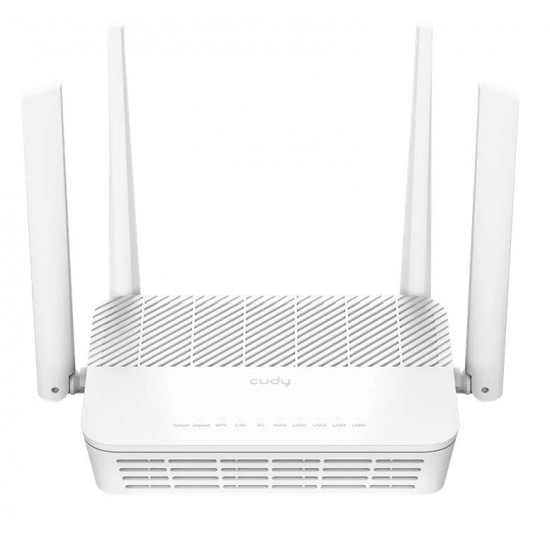

CUDY AX3000 2.5G WI-FI 6 MESH POE ROUTER

A PoE-powered WiFi 6 router with 2.5 Gbps internet connectivity, ideal for connecting a large number of devices and reducing latency. It features a USB ports, enabling fire sharing or third-party device powering.

• 1.3 GHz Dual-Core CPU
• 512 MB RAM
• 4-Stream Dual-Band Wi-Fi 6
• 2402 Mbps + 574 Mbps Wi-Fi 1
• 1× 2.5GbE and 4× GbE
• 1× USB 2.0
• 802.3at/af, Passive PoE, DC
• Covers 130 m² (1,400 ft²) 2
• 200 Connected Devices 3
• Cudy App, Cloud Control

CPUChipsetMT7981CPU Details1.3 GHz Dual-Core, ARM Cortex-A53Memory/StorageFlash/ROM128 MB (1 Gbit) NANDDDR/RAM512 MB (4 Gbit) DDR4Wireless5 GHz Wi-Fi Speed2402 Mbps2.4 GHz Wi-Fi Speed574 Mbps5 GHz Wi-Fi Streams2T2R (2×2 MIMO) with an Extra Stream2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)Wi-Fi Antennas4× Fixed5 GHz Antenna Gain Max5.3dBi2.4 GHz Antenna Gain Max5.3dBiFEM or PA/LNA5 GHz: 3× Internal2.4 GHz: 2× InternalBeamformingTRUERange PerformanceMax: 220 m (722 ft)Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.Wall PerformanceTwo wooden walls with thickness < 10 cm (4)One concrete wall with thickness < 20 cm (7) or two concrete walls with thickness < 10 cm (4)Interfaces2.5G RJ45 Ports1Gigabit RJ45 Ports4Ethernet NotesThe 2.5G port is WAN port and accepts PoE powering, the Gigabit ports are LAN portsUSB-A 2.0 Ports1LEDSystemInternet2.4 GHz Wi-Fi5 GHz Wi-FiWANLANUSBPhysical ButtonsPower On/Off ButtonWPS ButtonReset ButtonPower InputDC JackPoE via Ethernet PortPowerPower MethodsDC802.3at/af PoEPassive PoEDC12V 1.5APassive PoE48~57VPower AdapterInput: 100 ~ 240 V, 50/60 Hz ACOutput: 12V 1.5A DCMax Power Consumption (W)11.5wIdle Power Consumption (W)4.2wPackage ContentWR3000PPower AdapterEthernet CableInstallation GuideWirelessWi-Fi StandardsWi-Fi 6Max Wi-Fi Modulation1024-QAMWi-Fi EfficiencyOFDMAMU-MIMOBSS ColorMax Capacity512Recommended Client Upper Limit200Max Wi-Fi Channel Width160 MHzWi-Fi SecurityWPA/WPA2/WPA3Guest Network2.4 GHz, 5 GHzWPSTRUEGeneralOperation ModesWi-Fi RouterAccess PointRange ExtenderWISPClientMeshCudy MeshMesh BackhaulWireless BackhaulWired BackhaulMulti-Band BackhaulTRUEWAN ModeDHCPStatic IPPPPOEPPTPL2TPInternet Failover SequenceWANWISPNetworkQoSPer-User Rate LimitingDHCPAddress ReservationDHCP Client ListServerIP VersionsIPv4/IPv6IPv6 ProtocolsRelayDynamic (SLAAC/DHCPv6)Static (Fixed IP)Passthrough464XLATMAP-EDS-LiteIPTV/VLANBridgeTag VLANVoIP VLANIPTV VLANTTL CustomizationExtendSpoofCustomIGMPIGMP ProxyIGMP Snooping

Επιπλέον Πληροφορίες:

• MODEL: CD-WR3000P
• SKU: CD-WR3000P
• MPN: WR3000P
• ΡΥΘΜΟΣ ΜΕΤΑΔΟΣΗΣ ΔΕΔΟΜΕΝΩΝ: AX3000Mbps
• ΚΕΡΑΙΑ: ΜΗ ΑΠΟΣΠΩΜΕΝΗ
• ΣΥΧΝΟΤΗΤΑ: DUAL BAND (2.4 + 5 GHz)
• ΥΠΟΣΤΗΡΙΞΗ POE: ΝΑΙ
• ΛΕΙΤΟΥΡΓΙΑ MESH: ΝΑΙ
• ΕΙΔΟΣ: AP/ROUTER
