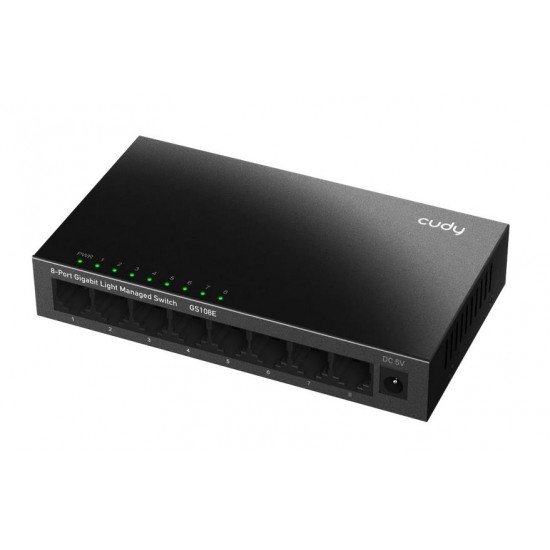

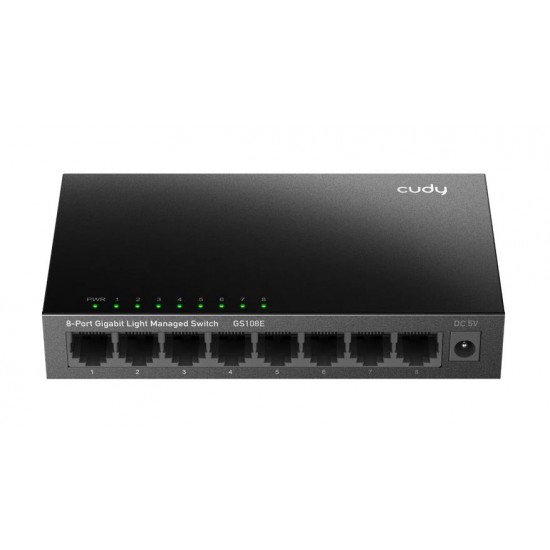

CUDY 8-PORT GIGABIT LIGHT MANAGED SWITCH

A 8-GbE switch with management features.

• 8× Gigabit Ethernet Ports
• Web Management, SNMP

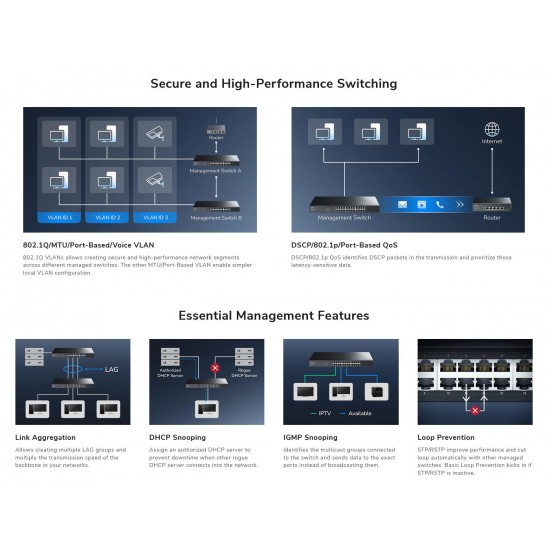

• VLAN (802.1Q/MTU/Voice/Port-Based)
• QoS (802.1p/DSCP/Port-Based)
• Port Mirror, Static Aggregation, etc
• STP/RSTP and Loop Prevention
• DHCP Snooping, IGMP Snooping
• EEE (802.3az Power Saving)
• Desktop, Wall-Mount

Memory/StorageFlash/ROM8 MB (64 Mbit ) NORInterfacesGigabit RJ45 Ports8LEDPowerSpeed/Link/ACT of Each Ethernet PortPower InputDC JackPerformanceCopper Speed and DistanceCat. 3 or higher cable: 100 meters at 10 MbpsCat. 5 or higher cable: 100 meters at 100 MbpsCat. 5e or higher cable: 100 meters at GigabitCat. 6 or higher cable: 150 meters at GigabitMAC Address Table8192Max Switching Capacity16 GbpsMax Forwarding Rate11.904 MppsJumbo Frame15 KBPacket Buffer4 MbitPowerBasic Power SavingTRUEPower MethodsDCDC5V⎓0.55APower AdapterInput: 100-240V~, 50/60HzOutput: 5V⎓0.55AMax Power Consumption2.75WIdle Power Consumption2.2WSwitching802.3 Protocols802.3x Flow Control802.3i 10BASE-T802.3u 100BASE-TX802.3ab 1000BASE-T802.3az Power Saving802.1 Protocols802.1d: STP802.1w: RSTP802.1p: LAN Layer 2 QoS/CoS802.1q: VLAN Bridge Operation802.1ab: LLDP/LLDP-MEDPort ManagementPort On/OffPort Negotiation SpeedPort Trunk (Static Aggregation)Port MirrorData Rate LimitJumbo Frame SettingsStorm ControlTraffic MonitorMAC Address ManagementEEE (802.3az)Port Trunk Groups4Max Port per Port Trunk Groups8L2 FeaturesIGMP SnoopingLoop PreventionDHCP SnoopingSTP/RSTPLLDP Config and NeighborsMTU VLANPort-Based VLAN802.1Q VLANVoice VLANDSCP QoS802.1p QoSPort-Based QoSReliabilityEMSIEC/EN 61000-4-2, Level 2 ESD: Contact: 4kV; Air: 8kVIEC/EN 61000-4-5, Level 3 Surge: 2kVEnvironmentOperating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)Operating Humidity: 10% ~ 90% non-condensingStorage Humidity: 5% ~ 90% non-condensingSystemControl MethodsConfig Web PageSNMP V1/V2Firmware UpgradeLocal UpgradeReliabilityBackup and RestoreDiagnostic ToolsCable Status/Length DiagnosisPingLanguagesEnglishBengaliGermanSpanishFrenchPortugueseRussianArabicIndonesianHindiUrduTraditional ChineseSimplified ChineseMechanicalDimension138×78×25 mm5.43×3.07×0.98 inchesProduct Weight214.5 g (7.57 oz.)Casing MaterialMetalInstallationDesktopWall-mountPackage ContentGS108EPower AdapterInstallation Guide

Επιπλέον Πληροφορίες:

• MODEL: CD-GS108E
• SKU: CD-GS108E
• MPN: GS108E
• PORTS: 8 + 2 GbE + 2 Gigabit SFP
• ΤΑΧΥΤΗΤΑ: 1Gbps
• ΤΥΠΟΣ SWITCH: DESKTOP LIGHT MANAGED
