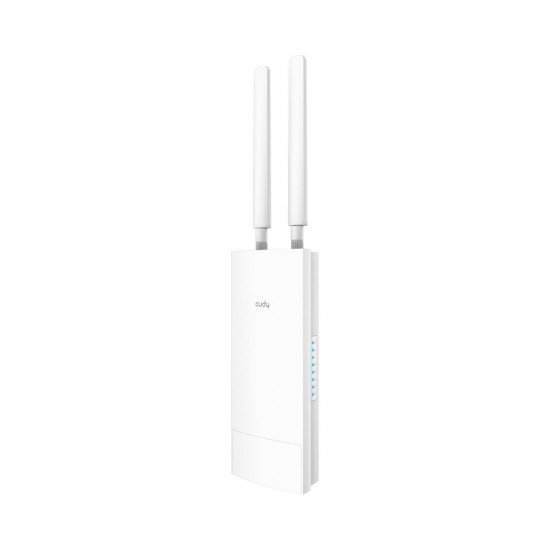

CUDY AP1200 AC1200 WiFi ΕΞΩΤΕΡΙΚΟ ACCESS POINT, DUAL BAND, MU-MIMO, POE

● AC1200 Dual Band MU-MIMO Wi-Fi
● MT7628DA+MT7613B
● 4-In-1: AP/RE/Router/WISP
● 1× 10/100M WAN/LAN Port
● WPS Button, Reset Button
● 24V Passive PoE (PoE Adapter included)
● IP65, -20~60°C (Ext. -40~65 °C), 8/15 KV Contact/Air ESD + 4 KV Surge/Lightning Protection

Hardware FeaturesHighlightsCPU: 580 MHz ProcessorFlash: 8 MB (64 Mbit)DDR: 64 MB (512 Mbit)Interface1× 10/100Mbps Ethernet (RJ-45) Port (Support Passive PoE)1× Reset Button1× WPS ButtonPower Supply24 V Passive PoE (+4,5pins; -7,8pins)Dimensions ( W×D×H )

AP Body: 240×100×53.7 mm
Antennas: 197.5×21.6×15.5 mm

Height of AP with Antennas installed: 438 mm

Antenna Type

2× Detachable Omni-directional Antennas

MountingPole/Wall Mounting (Kit included)Wireless FunctionWireless Standard:

Wi-Fi 5 (802.11ac/n/g/b/a)

Frequency:5 GHz, 2.4 GHzSignal Rate: 5 GHz: Up to 867 Mbps2.4 GHz: Up to 300 MbpsBandwidth20/40/80 MHz

Wireless Functions

(Features with * require a Cudy AC as the gateway. Cudy AC is coming soon)

(Features with ** require a Cudy WR1300/WR3000 or Cudy AC as the gateway)

Multiple SSID*Captive Portal**Enable/Disable Wireless RadioTransmit Power Control QoS (WMM)Band Steering*MU-MIMOBeamformingRate LimitReboot ScheduleWireless ScheduleWireless EncryptionWPA-PSKWPA2-PSKWPA-PSK/WPA2-PSKSecurityAccess ControlMac FilteringWireless Isolation ClientsWeather-ProofDust/Water-ProofIP65 (Protection against any dust and low-pressure water from any directions)Lightning Protection

4 KV Lightning/Surge protection at the Ethernet port

ESD8 KV Contact / 15 KV Air ESD protectionWorking Temperatures

-20/60°C

Extend -40/65°C (Booted up in advance. Performance may drop slightly.)

Operating ModeAccess Point ModeRouter ModeRE ModeWISP ModePackage ContentsOutdoor Wireless Access Point2× Detahcable Wi-Fi Antennas24 V Passive PoE AdapterMounting KitsInstallation GuideEnvironmentOperating Temperatures: -20~60 °C (-4~140°F) ext. -40~65 °C (-40~149°F)Storage Temperature: -40–70 °C (-40–158 °F)Operating Humidity: 10–90% RH non-condensingStorage Humidity: 5–90% RH non-condensingSystem Requirements

Operating system that supports network/Wi-Fi connectivity, such as Windows, Android, macOS, iOS, or Linux

Επιπλέον Πληροφορίες:

• MODEL: CD-AP1200-OUT
• SKU: CD-AP1200-OUT
• MPN: AP1200 Outdoor
• ΡΥΘΜΟΣ ΜΕΤΑΔΟΣΗΣ ΔΕΔΟΜΕΝΩΝ: AC1200Mbps
• ΣΥΧΝΟΤΗΤΑ: DUAL BAND (2.4 + 5 GHz)
• ΥΠΟΣΤΗΡΙΞΗ POE: ΝΑΙ
• ΕΙΔΟΣ: AP/ROUTER
