Baseus PioneerJoy 8-in-1 USB-C hub HDMI 4K@60Hz + HDMI 4K@30Hz + DisplayPort 8K@30Hz + VGA + 2 x USB-A 3.0 + 2 x USB-C - gray

The Baseus PioneerJoy 8-in-1 is more than just a hub—it's a professional command center for your laptop. If you want to get the most out of a single USB-C port, this device is designed with you in mind. It allows you to connect up to four displays simultaneously (HDMI1, HDMI2, DisplayPort, and VGA), offering stunning image quality up to 4K at 120Hz. It's the perfect solution for graphic designers, data scientists, programmers, streamers, and anyone who works in multiple windows simultaneously.

The built-in 100W PD port powers your laptop, while two additional USB-C ports (70W and 20W) let you charge your phone, tablet, or other devices without tangling. Superfast USB 3.0 ports (up to 5 Gbps) enable lightning-fast data transfer, while intelligent power and thermal management protects your device from overload. The entire device is housed in a robust brushed aluminum and tempered glass enclosure, whose design was recognized by the 2022 Red Dot Design Award jury.

This premium device combines everything you expect from a modern workstation or docking station – versatility, speed, security and style.

~

Specification:

• Brand: Baseus
• Model: Baseus PioneerJoy 8in1
• Input port: USB-C
• Output port types: HDMI1, HDMI2, DisplayPort, VGA, 2 x USB-A 3.0, 2 x USB-C
• Display support:
  • Windows (extended mode): A+B+C+D+E
  • macOS (extended mode): A+B+B+B+B
  • Windows/macOS (mirror mode): A+A+A+A+A
• Maximum resolution:
  • DisplayPort: 4K@120Hz
  • HDMI1: 4K@60Hz
  • HDMI2: 4K@30Hz
  • VGA: 1080p@60Hz
• Landing:
  • Input (USB-C port): 100W (Power Delivery)
  • USB-C1 output: 70W max
  • USB-C2 output: 20W max
• Data transfer:

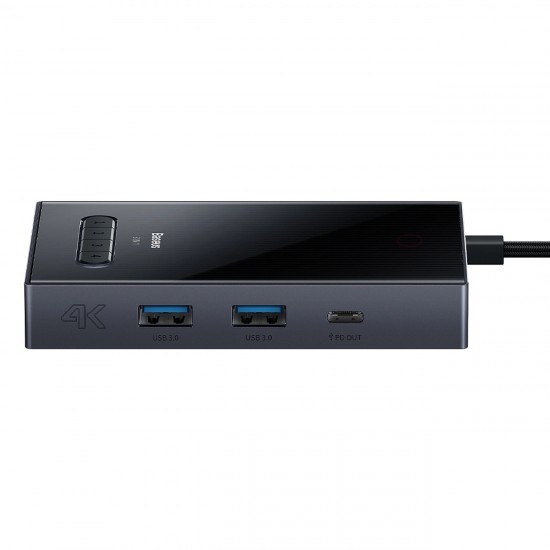

  • USB-A 3.0: 2 x 5 Gbps
• Dimensions: 54 x 100 x 16.5 mm
• Cable length: 24 cm
• Weight: 125 g
• Material: aluminum alloy + tempered glass
• Color: gray

Supported output resolutions:

Note: The above resolutions are for laptops supporting the DP1.4 protocol. With DP1.2, the laptop's main screen will turn off when three external monitors are connected.

~

The most important advantages of the Baseus PioneerJoy 8-in-1 hub:

• Expand up to 4 displays: HDMI, DisplayPort, and VGA support lets you work in multiple applications simultaneously. Each window, each chart, and each project on a separate screen.
• 4K@120Hz quality on DisplayPort: Guarantees incredible sharpness and smoothness – not only for video editors, but also for gamers and presenters.
• PD 100W + two USB-C outputs (70W + 20W): Power your laptop without power loss and charge your smartphone at the same time – conveniently, safely, quickly.
• Express data transfer: USB 3.0 ports offer speeds of up to 5 Gbps – transferring 1 GB in just a few seconds, ideal for external drives or flash drives.
• Eye-catching design: The aluminum housing and tempered glass panel look great on any desk – minimalistic and professional.

~

Forget about switching windows – with the Baseus PioneerJoy, you gain a true workspace. Work, analyze, create, and present simultaneously on four independent screens. Each port is responsible for a different part of the image, and the extension layout is compatible with both Windows and macOS.

A 120Hz refresh rate not only improves workflow, but also ensures smooth operation and perfect detail reproduction. Ideal for video editing and animation work.

The 100W PD input and two USB-C output ports ensure efficient and safe charging of a laptop (70W) and a second device, e.g. a smartphone or tablet (20W), without interrupting your work.

Two USB 3.0 ports guarantee super-fast data transfer from external drives, flash drives, card readers, and other devices. No lag, no interruptions, no stress.

The minimalist, elegant design with glass and aluminum complements modern offices and home workstations. Physical screen switches allow you to instantly ensure your privacy and data security.
