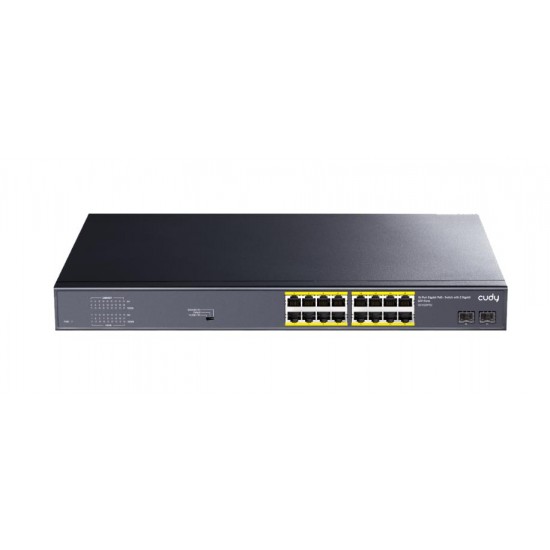

CUDY GS1020PS2 16 PORT + 2 GIGABIT SFP POE+ SWITCH, 200W

IEEE 802.3af / 802.3at standard compliant
200-watt total PoE power budget, up to 30-watt per port
16xGbE PoE+Port+2 x SFP Port
CCTV Mode supports remote power&data feeding up to 250M
VLAN mode supports 16 POE+ ports isolated from each other
LED indicators for network diagnostics
19-inch metal case, internal power design

Model GS1020PS2 Connector Type 16*10/100/1000M PoE Ports + 2*Gigabit SFP Uplink Ports Network Media (Cable)

IEEE802.3

IEEE802.3u

IEEE802.3x

IEEE802.3ab

IEEE802.3z

PoE Parameters

PoE Standard: IEEE802.3af /IEEE802.3at

Max each port: 15.4W ( IEEE 802.3af )

Max each port：30W ( IEEE 802.3at ) PoE compatibility: IEEE 802.3af/at adaptive PoE port output: DC48-55V Power Pin : Power over spare pairs 1/2(+) , 3/6 (-) Network Media

10BASE-T: Cat 5E UTP(≤250 meter)

100BASE-TX: Cat5 or more UTP (≤100 meter)

1000BASE-TX: Cat5 or more UTP (≤100 meter) Optical

MultiMode Fiber: 850nm, 1310nm, Transmission Distance: 550m/2Km

Single-Mode Fiber: 1310nm, 1550nm, Transmission Distance: 20/40/60/80/100/120km Performance Specification Bandwidth: 52Gbps MAC: 8K Packet Buffer Memory: 4M Packet Forwarding Rate: 38.7Mpps Power Supply Power input: AC100-240V 50/60Hz, Power Budget: 200W LED Indicator PWR

Power supply indicator (Red)

Lighting：Powered

Un-Light：No Power 1-26

RJ-45 LINK indicator (Green)

Lighting：1000M Connect

Un-Light：100M or Disconnect 1-26

RJ-45 ACT indicator (Green)

Lighting：Connecting

Flashing：Data Transmit

Un-Light：Disconnect Working Environment

Operating Temperature: -20℃ ~ 50℃;

Storage Temperature: -40℃ ~ 80℃;

Operating Humidity: Max 90%, non-condensing

Storage Humidity: Max 95%, non-condensing

Working Height: Max to 10,000 feet (3,000 meters)

Storage Height: Max to 10,000 feet (3,000 meters)

Επιπλέον Πληροφορίες:

• MODEL: CD-GS1020PS2
• SKU: CD-GS1020PS2
• MPN: GS1020PS2
• PORTS: 16
• ΤΑΧΥΤΗΤΑ: 1Gbps
• ΤΥΠΟΣ SWITCH: RACKMOUNT PoE
