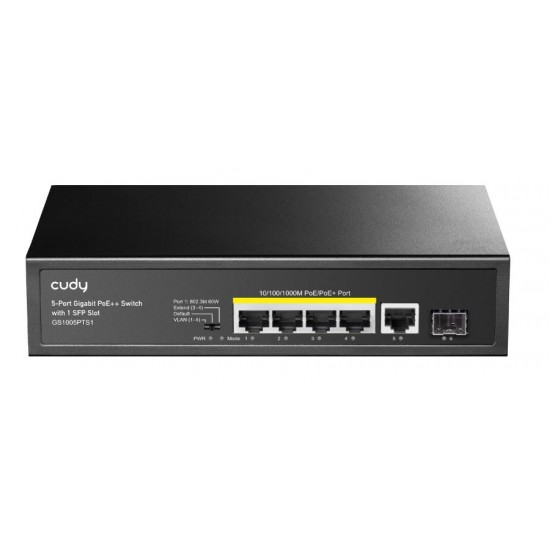

CUDY GS1005PTS1 5-PORT GIGABIT POE+ SWITCH WITH 1 SFP PORT 120W

● 120 watts PoE power supply
● 4 Gigabit PoE+ ports and 1 Gigabit Ethernet ports+1Gigabit SFP
● Extend mode support remote PoE feeding up to 250m
● VLAN mode isolate each PoE Ports for security
● IEEE 802.3at / IEEE 802.3af standard compliant
● Plug&play, simple setup with no configuration needed

ModelGS1005PTS1Ethernet

4*10/100/1000M PoE Port

1*1000M RJ45 Port

1* Gigabit SFP Uplink Port

Switching Capacity12GbpsThroughput8.928MppsPacket Buffer1MbMAC Address2KJumbo Frame9216bytesTransfer ModeStore and forwardMTBF100000 hourNetwork protocol

IEEE802.3 (10Base-T)

IEEE802.3u (100Base-TX)

IEEE802.3ab(1000Base-TX)

IEEE802.3z(1000Base-FX)

IEEE802.3x (Flow control)

PoE Protocol

IEEE802.3af （15.4W）

IEEE802.3at （30W）

IEEE802.3at （4 Pair 60W）

Industry Standard

EMI: FCC Part 15 CISPR (EN55032) class A

EMS: EN61000-4-2 (ESD),EN61000-4-4 (EFT),EN61000-4-5 (Surge)

Shock: IEC 60068-2-27

Free Fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Network Medium

10Base-T : Cat3、4、5 or above UTP(≤100m)

100Base-TX : Cat5 or above UTP(≤100m)

1000Base-TX : Cat5 or above UTP(≤100m)

Optical Media

Multimode fiber : 50/125, 62.5/125, 100/140μm

Single mode fiber: 8/125, 8.7/125, 9/125, 10/125μm

Working Environment

Working Temperature：-20~50°C

Storage Temperature：-40~85°C

Working Humidity ：10%~90%，non-condensing

Storage Temperature：5%~90%，non-condensing

Working Height：Maximum10,000 feet

Storage heigh：Maximum 10,000 feet

PWR（power supply）

Lighting：Powered

Un-Light：No Power

Mode（DIP）

Lighting：VLAN

Un-Light：Default

Flashing：Extend

1-6 Gree（Link&Data）

Lighting：Connecting

Flashing：Data Transmit

Un-Light：Disconnect

DIP Switch

VLAN：Port isolation mode. In this mode, the PoE ports (1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port.

Default: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters

Extend：Link extension mode, 3-4 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M

Product Dimension200*118*44mmPackage Dimension245*190*60mmN.W0.6kgG.W0.9kgPacking Info

Carton MEAS：505*320*402mm

Packing Qty：20units

Packing Weight：19KG

Package List

Input Voltage ：AC 100-240 V

Package ListSwitch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc,

Επιπλέον Πληροφορίες:

• MODEL: CD-GS1005-PTS1-V1
• SKU: CD-GS1005-PTS1-V1
• MPN: GS1005PTS1
• PORTS: 5
• ΤΑΧΥΤΗΤΑ: 1Gbps
• ΤΥΠΟΣ SWITCH: DESKTOP PoE
