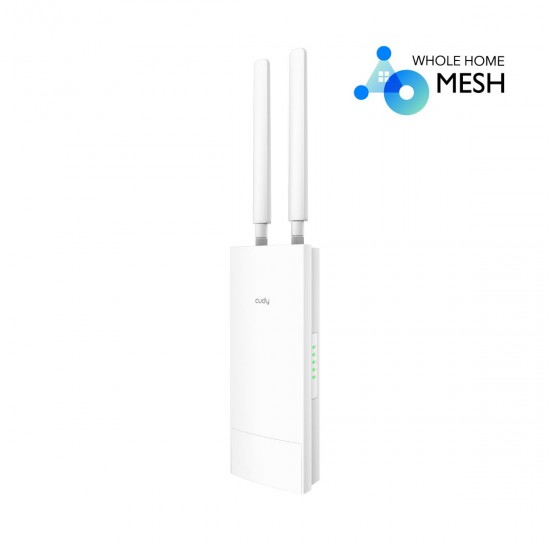

CUDY AX3000 ΕΞΩΤΕΡΙΚΟΥ ΧΩΡΟΥ ACCESS POINT, HIGH POWER WIFI 6 2.5G , IP65, POE

● AX3000 Wi-Fi 6
● Five Independant PA for High-Power Coverage
● Hardware Watchdog Improves Reliability
● MT7981
● 1× Gigabit WAN/LAN Port
● WPS Button, Reset Button

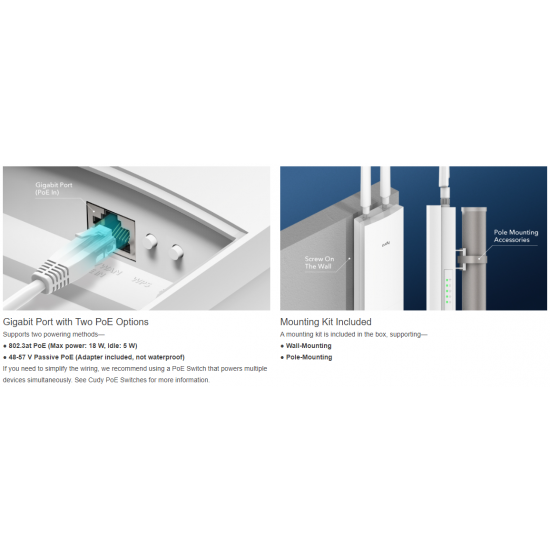

● 802.3at/af PoE or 48~57 V Passive PoE
● MU-MIMO/OFDMA
● IP65, -40~65°C (Ext. -40~70 °C)
● 8/15 KV Contact/Air ESD + 6 KV Surge/Lightning Protection

Specifications

Hardware FeaturesHighlightsCPU: 1.3 GHz Dual-Core ARM Cortex-A53 CPUFlash: 128 MB (1 Gbit)DDR: 256 MB (2 Gbit)Interfaces1× Gigabit Ethernet Port (PoE-In)1× Reset Button1× WPS ButtonPower Supply802.3at PoE48-57 V Passive PoE (+4,5pins; -7,8pins)Dimension (W×D×H)

AP Body: 240×100×53.7 mm
Antennas: 197.5×21.6×15.5 mm

Height of AP with Antennas installed: 438 mm

Antenna Type

2× Detachable Omni-directional Antennas

MountingPole/Wall Mounting (Kit included)Wireless FunctionWireless StandardWi-Fi 6 (802.11ax/ac/n/g/b/a)Frequency5 GHz, 2.4 GHzSignal Rate:5 GHz: Up to 2402 Mbps2.4 GHz: Up to 574 MbpsBandwidth20/40/80/160 MHz

Wireless Functions

(Features with * require a Cudy AC as the gateway. Cudy AC is coming soon)

(Features with ** require a Cudy WR1300/WR3000 or Cudy AC as the gateway)

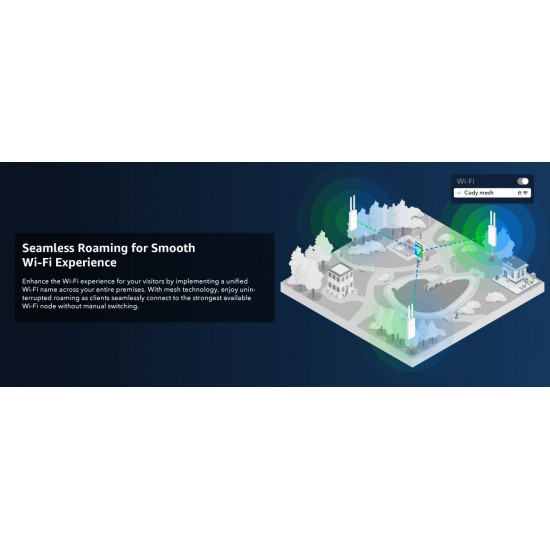

Fast RoamingMultiple SSID *Captive Portal **Self-Organizing MeshBand Steering *Auto Channel Optimization *Enable/Disable Wireless Radio Transmit Power Control QoS (WMM)MU-MIMO BeamformingRate LimitReboot ScheduleWireless ScheduleWireless EncryptionWPA-PSKWPA2-PSKWPA-PSK/WPA2-PSKWPA3-SAEWPA2-PSK/WPA3-SAESecurityAccess ControlMac FilteringWireless Isolation ClientsVPN Server and Client Zerotier, Wireguard, OpenVPN, IPSec, L2TP, PPTPDNS over TLS Cloudflare, Google, Quad9Weather-ProofDust/Water-ProofIP65 (Protection against any dust and low-pressure water from any directions) Lightning Protection

6 KV Lightning/Surge protection at the Ethernet port

ESD8 KV Contact / 15 KV Air ESD protection Working Temperatures

-20/60°C

Extend -40/70°C (Booted up in advance. Performance may drop slightly.)

Operating ModesAccess PointWi-Fi RouterRange ExtenderWISPMeshPackage ContentOutdoor Wireless Access Point2× Detahcable Wi-Fi AntennasPassive PoE AdapterMounting KitsInstallation GuideEnvironmentOperating Temperatures: -40~65 °C (-4~149°F) ext. -40~70 °C (-40~158°F)Storage Temperature: -40–70 °C (-40–158 °F)Operating Humidity: 10–90% RH non-condensingStorage Humidity: 5–90% RH non-condensingSystem Requirements

Operating system that supports network/Wi-Fi connectivity, such as Windows, Android, macOS, iOS, or Linux

Επιπλέον Πληροφορίες:

• MODEL: CD-AP3000-OUT
• SKU: CD-AP3000-OUT
• MPN: AP3000-OUT
• ΡΥΘΜΟΣ ΜΕΤΑΔΟΣΗΣ ΔΕΔΟΜΕΝΩΝ: AX3000Mbps
• ΚΕΡΑΙΑ: ΑΠΟΣΠΩΜΕΝΗ
• ΣΥΧΝΟΤΗΤΑ: DUAL BAND (2.4 + 5 GHz)
• ΥΠΟΣΤΗΡΙΞΗ POE: ΝΑΙ
• ΛΕΙΤΟΥΡΓΙΑ MESH: ΝΑΙ
• ΕΙΔΟΣ: Outdoor Κεραία/AP
